2008年9月21日星期日

新机床校准服务使用高精度激光干涉仪 - 检测校准服务

Our new calibration service allows calibration of your three coordinate measuring machines and your machine tools, is an inexpensive and fast service。
我们的新机床校准服务使您的校准三坐标测量机和您的机床, 廉价和快速。

For each machine we will perform accurate inspection and provide you with a full calibration report.
对于每一个机器,我们将进行准确的检查,并为您提供全面的校准报告。

You do not need to purchase a laser interferometer, if you have just a few machines to inspect.
您不需要购买激光干涉仪,如果你有几个机床检查。

This service has been designed for customers who need to inspect and assess geometric accuracy of their machines, at a minimum cost.
这项服务旨在为客户谁需要检查和评估的几何精度他们的机器,在最低的成本。

Total cost for calibration can vary between 10000 Yuan and 15000 Yuan, according to machine type 总成本可校正之间10000元和15000元,根据机器类型

For further information please contact Luca 如需进一步信息,请联系卢卡先生www.feanor.com/laser_cn.htm

Keywords: 检测校准服务, calibration of three coordinate measuring machines with laser interferometer, 校准三坐标测量机,激光干涉仪
laser interferometer for calibration of three coordinate measuring machines 激光干涉仪的校准三坐标测量机
calibration service with laser interferometer 校准服务的激光干涉仪
机床校准服务
下载用户手册 http://www.feanor.com/LP30_manual.pdf

2008年9月13日星期六

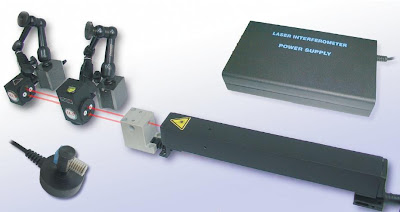

FEANOR SCALER 低成本高精度激光测量任务

FEANOR SCALER


小尺寸( 30x30x240毫米)
设计为嵌入式,在更大的装置
高配置
可能的措施, 4轴与一个单一激光头
的可能性,纤维束交付
测量范围从几十纳米到数米
低廉的价格
甚高分辨率“ ( <>SCALER 是一个高度可配置的单频激光干涉仪。作为一个激光光源古典氦氖和微型半导体激光器,可用于。

SCALER是旨在取代磁性和光学级。为有竞争力的价格提供可达到的最高分辨率和精度,测量范围大,高配置的可能性,或测量许多石斧,从一个单 一的激光头。
SCALER 可以用在机床工业,科学实验室和在所有的申请,要求东铁支线总监以最高的精度在负担得起的价格。
测量参数
测量范围 0 - 10 m (30 m)*
测量精度: -未经气象传感器 - 10 ppm
-与气象传感器 -1 ppm
-在真空 - 0.01 ppm
决议 2 nm (100 pm)*
频率的动态测量 < 100 kHz
PC接口 USB
激光头重量 0,5 kg
激光头大小 30x45x245 mm

* option

机床维修, 机床几何检查, 机床精度检查,数控改造
下载用户手册 http://www.feanor.com/LP30_manual.pdf

2008年9月12日星期五

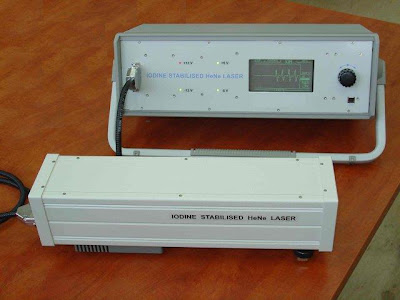

FEANOR双频激光标准- Frequency Laser Standard

双频激光标准- Frequency Laser Standard


双频激光标准- Frequency Laser Standard


特点
充分遵守国际委员会的度量衡CIPM 97 "Mise en pratique" 建议,为了实现这个"米"
频率可重复性:2.5 x 10-11
频率稳定度:2.5 x 10-12
紧凑建设
自动调谐/锁定在在12个不同的碘的超精细组件
小学激光参考标准,为实现这一米
校准参考稳定激光器

Frequency Laser Standard

Features:

Fully compliance with the International Committee of Weights and Measures CIPM 97 "Mise en pratique" recommendations for the realization of the meter
Frequency repeatability: 2.5 x 10-11
Frequency stability: 2.5 x 10-12
Compact construction
Automatic tune/ lock-in at 12 different iodine hyperfine components
Primary laser reference standards for realization of the meter
Calibration reference for stabilized lasers

激光频率标准,与参考频率的基础上,过渡原子碘同位素蒸气,是一个自动的实验室设备的设计,比较和校准的He-Ne ( 632,8 nm波长)激光器。
这是一个高准确度的实验室设备与自动吸收峰,检测和结果展示图形显示


Frequency Laser Standard, which reference frequencies based on the transition of atomic iodine isotopic vapor, is an automatic laboratory device designed to compare and calibrate He-Ne (632,8nm wavelength) lasers.

It is a high accuracy laboratory device with automatic absorption peaks detection and results presentation graphic display.


Measurement parameters 测量参数

Wavelength 波长- 633 nm
Frequency stability (10s averaging time) 频率稳定度 - 2.5-12
Repeatability重复性 - 2.5 x 10-11
Method of stabilization方法稳定 - Third harmonic method
Accessible 127I2 hyperfine components方便的 超精细组件 - d,e,f,g,h,i,j,k,l,m,n of the 11-5 R(127) absorption
Iodine cell sidearm temperature碘电池温度 - 15.0 ± 0.2 °C (Option of electing temperature in range 11.0 - 19.0 °C选项选出的温度范围)
Output power输出功率 - 110 μW
Polarization两极化 - Linear, vertical 线性,垂直
Plasma tube等离子管 - Double Brewster window
Continuous frequency lock over 24 hours for ambient temperature 20 °C μ1°C连续频率锁定超过24小时为常温 - Yes 有
Automatic tuning自动调谐 - Yes有
Manual tuning手调谐 - Yes有
Dimension of controller维控制器 - 350x250x110 mm
Dimension of the laser head维激光头 - 460x180x155 mm

机床维修, 机床几何检查, 机床精度检查,数控改造
